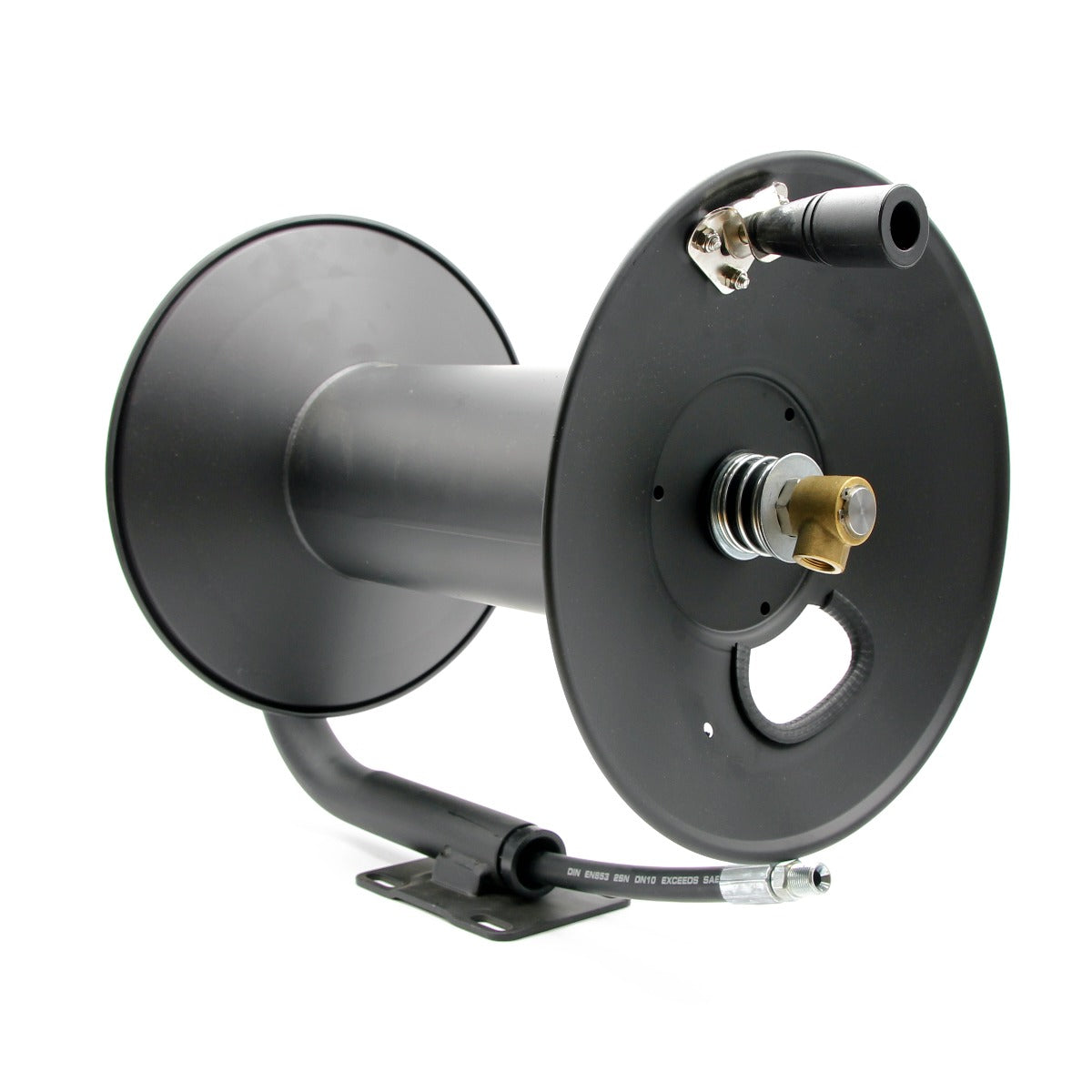

High Pressure Hose Reel (200ft / 60m) - Fixed base

Fixed base reel for 60m pressure washer hose

High Pressure Hose Reel (200ft / 60m) - Fixed base

SKU MD200HoseReel Ask a question

Ask a question

We reply by email, usually the same working day.

Notify Me When Back in Stock

By asking for an alert you also join The Drivers HQ email list for news and offers. You can unsubscribe at any time.

£159.95

In stock

Earn 160 HQ Rewards points How it works
High Pressure Hose Reel (200ft / 60m) - Fixed base High Pressure Hose Reel (200ft / 60m) - Fixed base £159.95

Recommended with this

Delivery Only · No Click & Collect Order online and we’ll get it to your door.

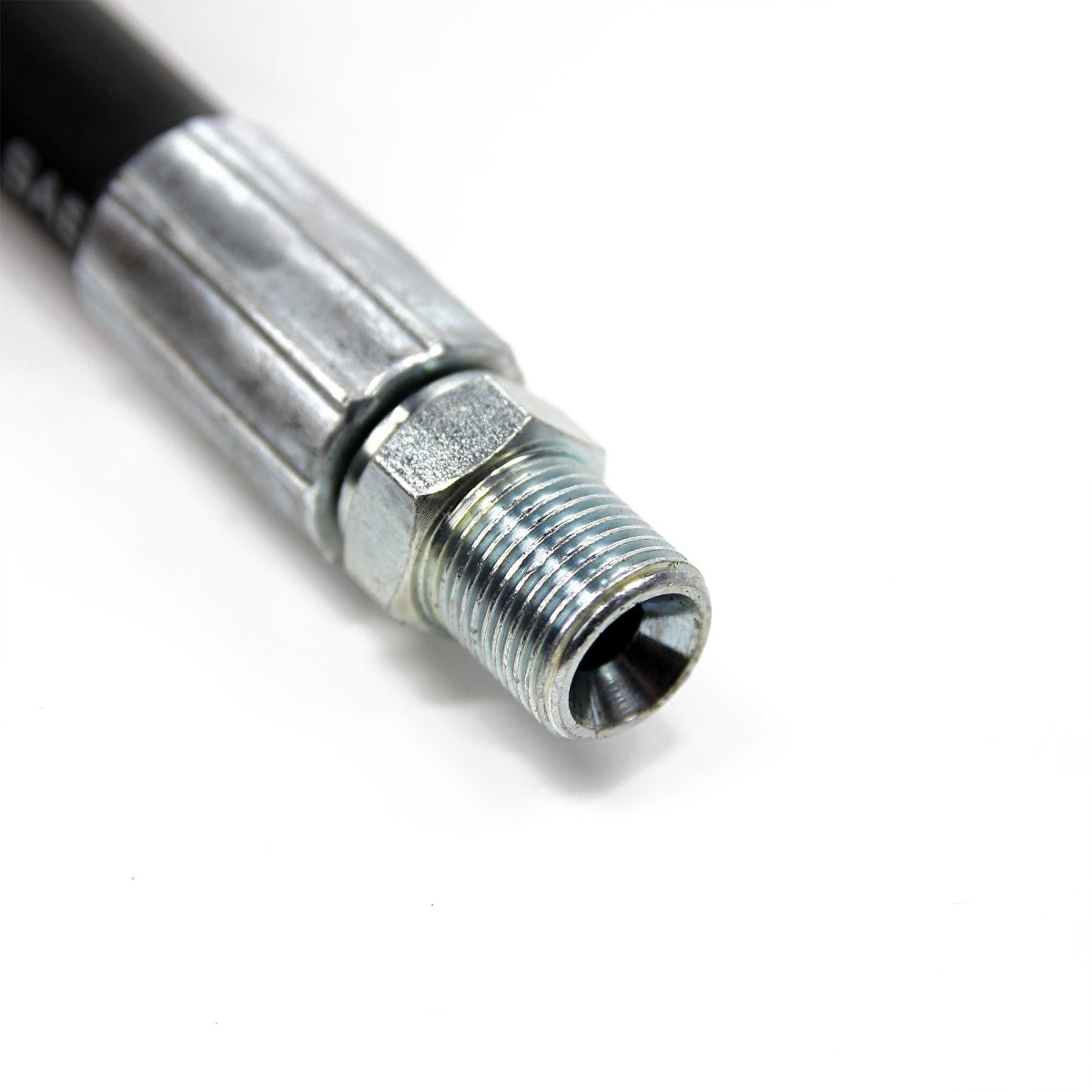

High pressure hose reel with fixed mounted base, direct hand crank rewind, locking mechanism, full flow swivel joint and short hose tail with 3/8 male screw connector. Designed to take up to 200ft / 60m high pressure hose (hose not included).

  • Fixed mounted base for stable use
  • Direct hand crank rewind

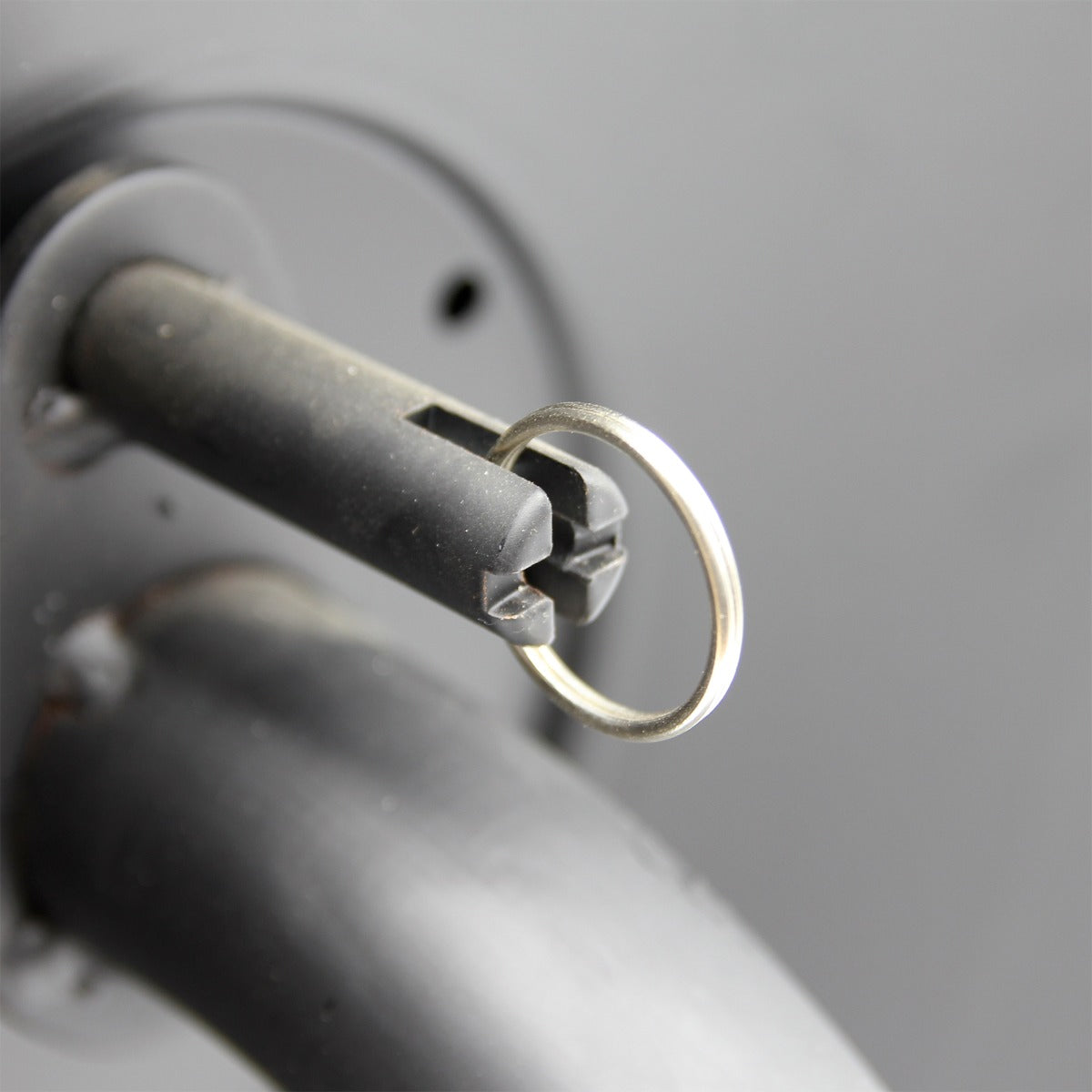

  • Built in locking mechanism

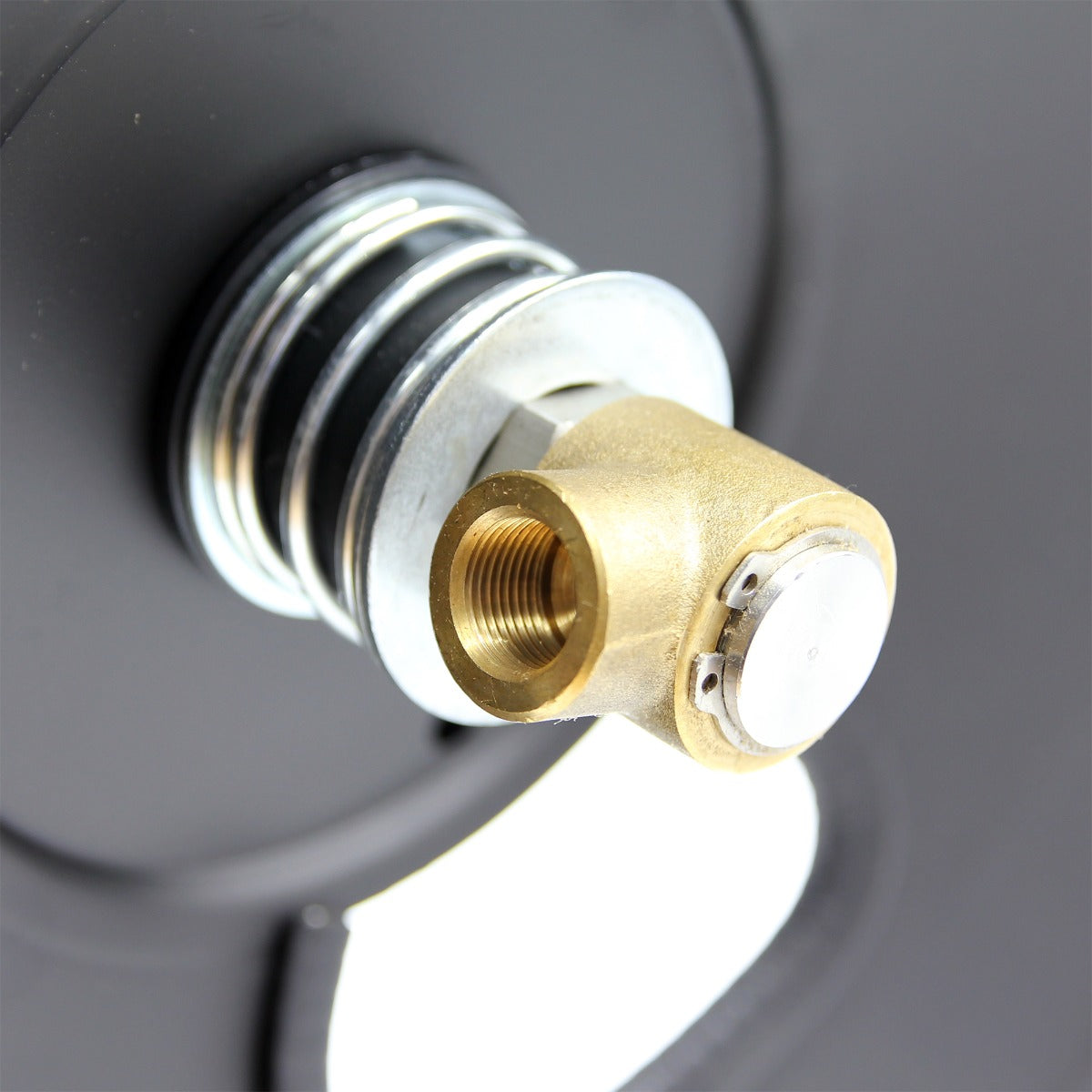

  • Full flow swivel joint
  • Takes up to 200ft of hose
  • 3/8in male screw connector inlet
  • 3/8in female screw thread outlet
  • Keeps a long wash hose tidy
Read the full description

Full Description

High pressure hose reel with fixed mounted base, direct hand crank rewind, locking mechanism, full flow swivel joint and short hose tail with 3/8 male screw connector. Designed to take up to 200ft / 60m high pressure hose (hose not included).

Specification
Max. Capacity: 200ft / 60 metre 3/8" hose
Max. Pressure: 275 Bar
Max. Temperature: 70°C
Inlet: 3/8" Male BSP Screw Thread
Outlet: 3/8" Female BSP Screw Thread

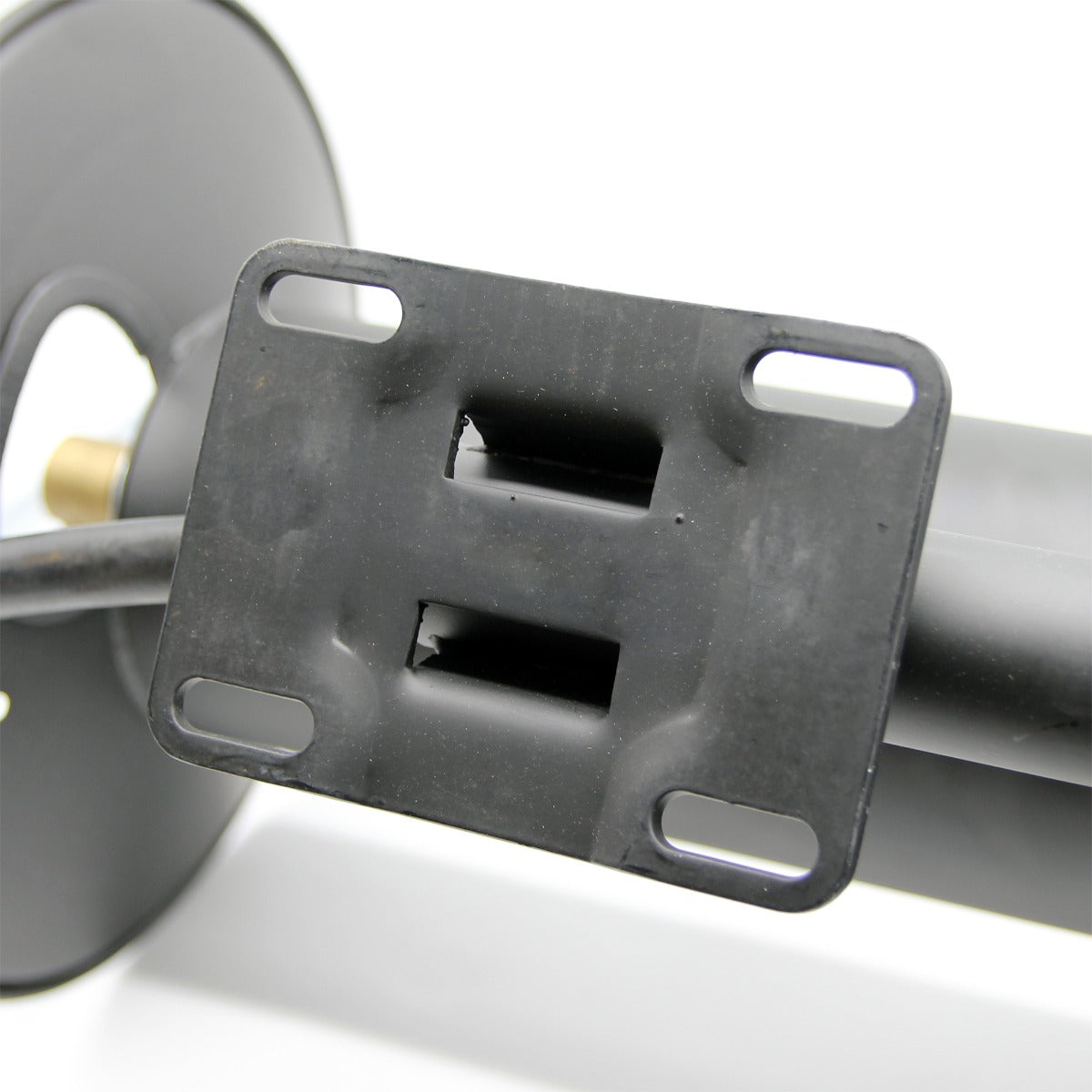

Base Mount Hole Dimensions: 8-13cm x 8.5cm

Tracked UK delivery, price shown at checkout.Delivery details

Delivery and collection

Full Delivery Information

Buying for someone? Gift cards from £30, by email or post.Gift cards

Secure checkout
  • Apple pay
  • Diners club
  • Discover
  • Google pay
  • Klarna
  • Maestro
  • Master
  • Paypal
  • Shopify pay
  • Unionpay
  • Visa

Key features

  • 275 Bar Rated
  • 60m Capacity
  • 3/8in BSP Thread
  • Hand Crank Rewind
  • Fixed Base

The Drivers HQ

Expert Notes

This fixed base hose reel is built to store and feed out up to 200ft (60m) of 3/8in pressure washer hose, though the hose itself is not included. A direct hand crank rewind and locking mechanism let it be wound in and held still when parked, while a full flow swivel joint carries water through the reel without twisting the hose as it turns. The reel is rated to 275 Bar and 70C, with a 3/8in male BSP inlet and a 3/8in female BSP outlet. It suits a garage or workshop wall where a long hose needs to stay tidy, paired with a compatible 3/8in hose and fixings suited to the mounting surface.

Perfect For / Suitable Surfaces

  • Garage walls
  • Workshop walls
  • Driveway wash areas
  • Mobile valeting units
  • Home car wash setups
  • Commercial wash bays

Caution: Mount the reel on a solid, flat surface using fixings rated for its weight, and keep the swivel joint and crank clear of trailing hose.

Technical Specifications

Product Type
Pressure Washer Hose Reel
Brand
Equip2clean
Capacity
200ft / 60m (3/8in Hose)
Max Pressure
275 Bar
Max Temperature
70C
Inlet
3/8in Male BSP Screw Thread
Outlet
3/8in Female BSP Screw Thread
Mounting
Fixed Base
Base Mount Hole Dimensions
8 To 13cm x 8.5cm
Rewind
Direct Hand Crank
Hose Included
No

How To Use

Fitting

  1. Choose a solid, flat surface able to take the reel's weight.
  2. Mark and drill the base mount holes to the stated dimensions.
  3. Secure the reel with fixings suited to the mounting surface.
  4. Connect a 3/8in hose to the male screw tail on the reel.
  5. Wind up to 200ft of 3/8in hose onto the reel by hand.
  6. Engage the locking mechanism to hold the reel still when not in use.

Care and checks

  1. Check the crank handle and locking mechanism turn and engage smoothly.
  2. Inspect the swivel joint for leaks after connecting the hose.
  3. Wind the hose on evenly to avoid kinks or twists.
  4. Release the lock fully before winding or unwinding the hose.
  5. Keep the mounting fixings tight and check them periodically.

Top Tip: Wind the hose on evenly and use the full flow swivel joint to stop it twisting as it feeds out.

Performance Benefits

  • Keeps a long hose tidy for storage
  • Full flow swivel reduces hose twisting
  • Locks the drum still when parked
  • Rated for pressures up to 275 Bar
  • Frees up floor and wall space
  • Feeds water through as it turns

Frequently Asked Questions

What length of hose does this reel take?

It is designed to take up to 200ft (60m) of 3/8in hose, though the hose itself is not included.

Does the hose reel come with a hose?

No, the reel is sold on its own and a 3/8in hose needs to be bought separately.

What is the maximum pressure rating?

The reel is rated to a maximum pressure of 275 Bar.

What fittings does the reel use?

It has a 3/8in male BSP screw thread inlet and a 3/8in female BSP screw thread outlet.

Is the base fixed or portable?

This is a fixed mounted base design, so it is intended to be fitted in one place rather than moved around.

How do I stop the reel unwinding on its own?

Use the built in locking mechanism to hold the drum still once the hose is wound on.

What size are the mounting holes?

The base mount hole dimensions are 8 to 13cm by 8.5cm.

Does it turn while water is flowing?

Yes, the full flow swivel joint is designed to let water pass through while the reel turns.

HQ Suggests Tips & Insights

  1. Mount it on a solid, flat surface before loading the hose.
  2. Check the mounting holes match the base dimensions first.
  3. Wind the hose on evenly to avoid kinks.
  4. Engage the lock before leaving the reel unattended.
  5. Buy a 3/8in hose separately, as none is included.
  6. Keep the swivel joint clear of trailing hose.
  7. Release the lock fully before winding or unwinding.
  8. Available online with UK-wide delivery from The Drivers HQ.
