Fixed base hand crank hose reel

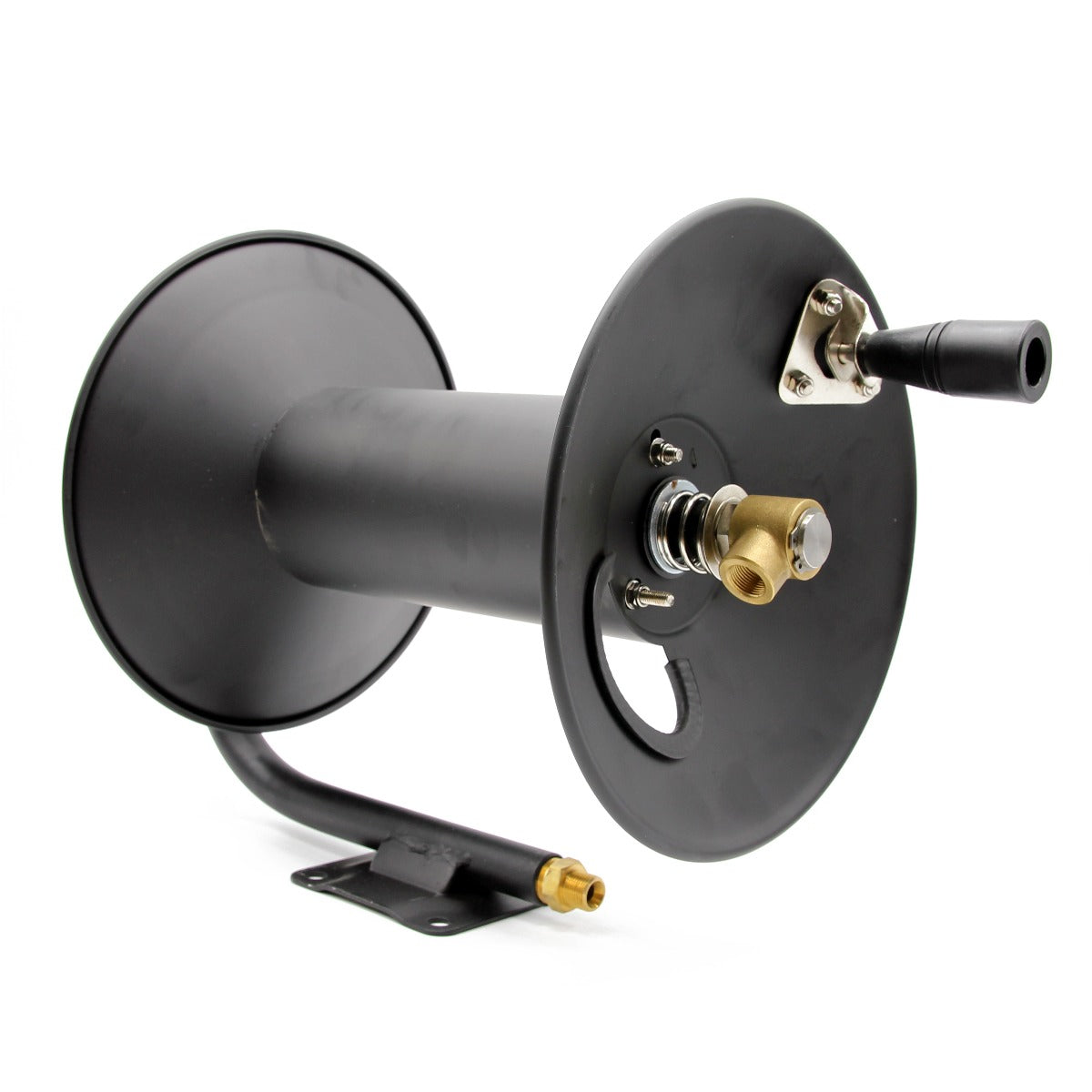

High Pressure Hose Reel (100ft / 30m) - Fixed base

SKU MD100HoseReel Ask a question

Ask a question

We reply by email, usually the same working day.

Notify Me When Back in Stock

£129.95

In stock

Length 30m

Earn 129 HQ Rewards points How it works

High Pressure Hose Reel (100ft / 30m) - Fixed base £129.95

High pressure hose reel with fixed mounted base, direct hand crank rewind, locking mechanism, full flow swivel joint and 3/8" male screw connector.  Designed to take up to 100ft / 30m high pressure hose (hose not included).

  • Fixed mounted base design

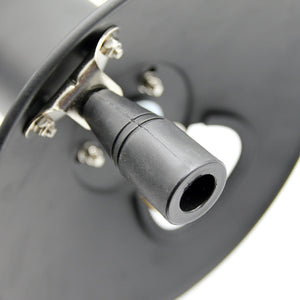

  • Direct hand crank rewind

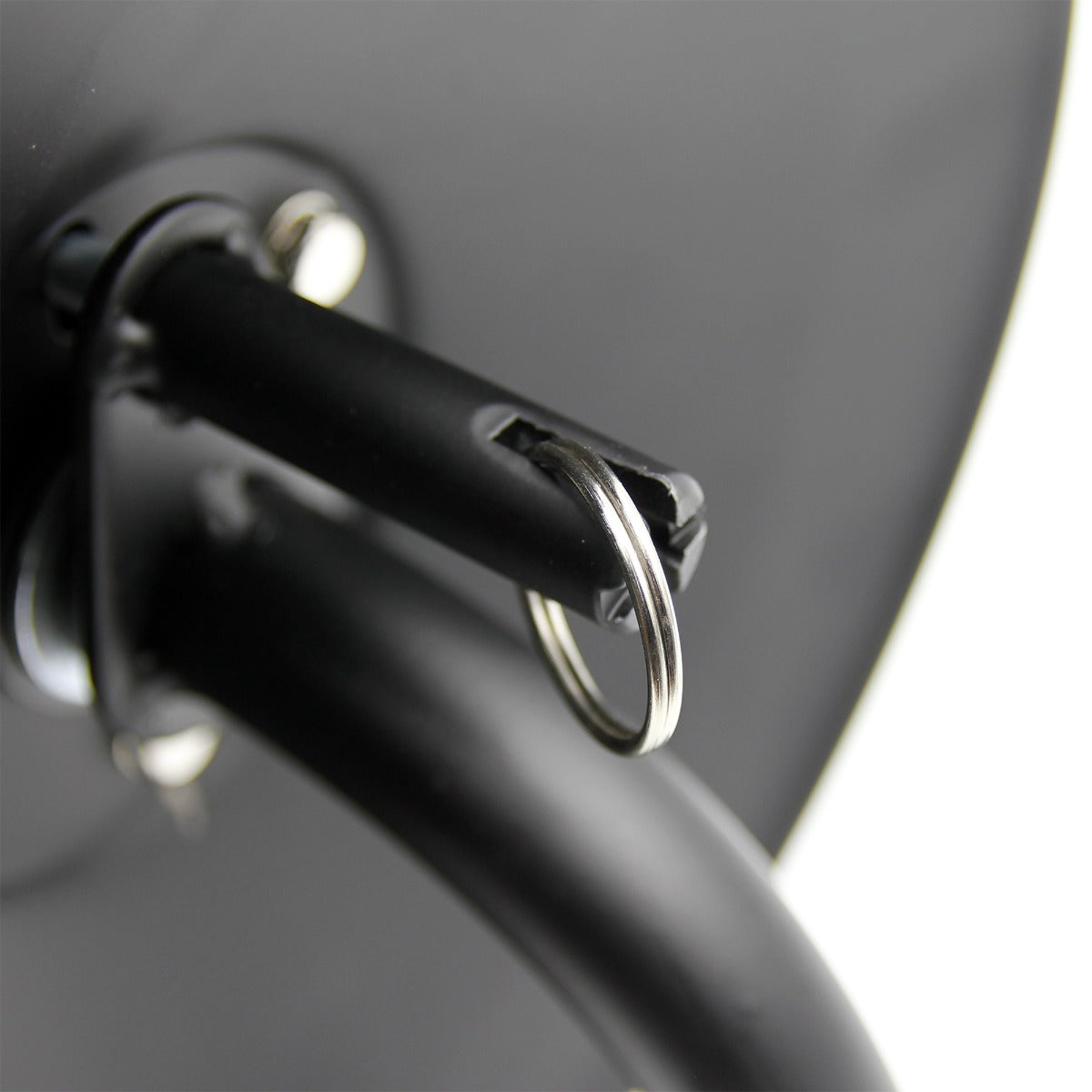

  • Built in locking mechanism

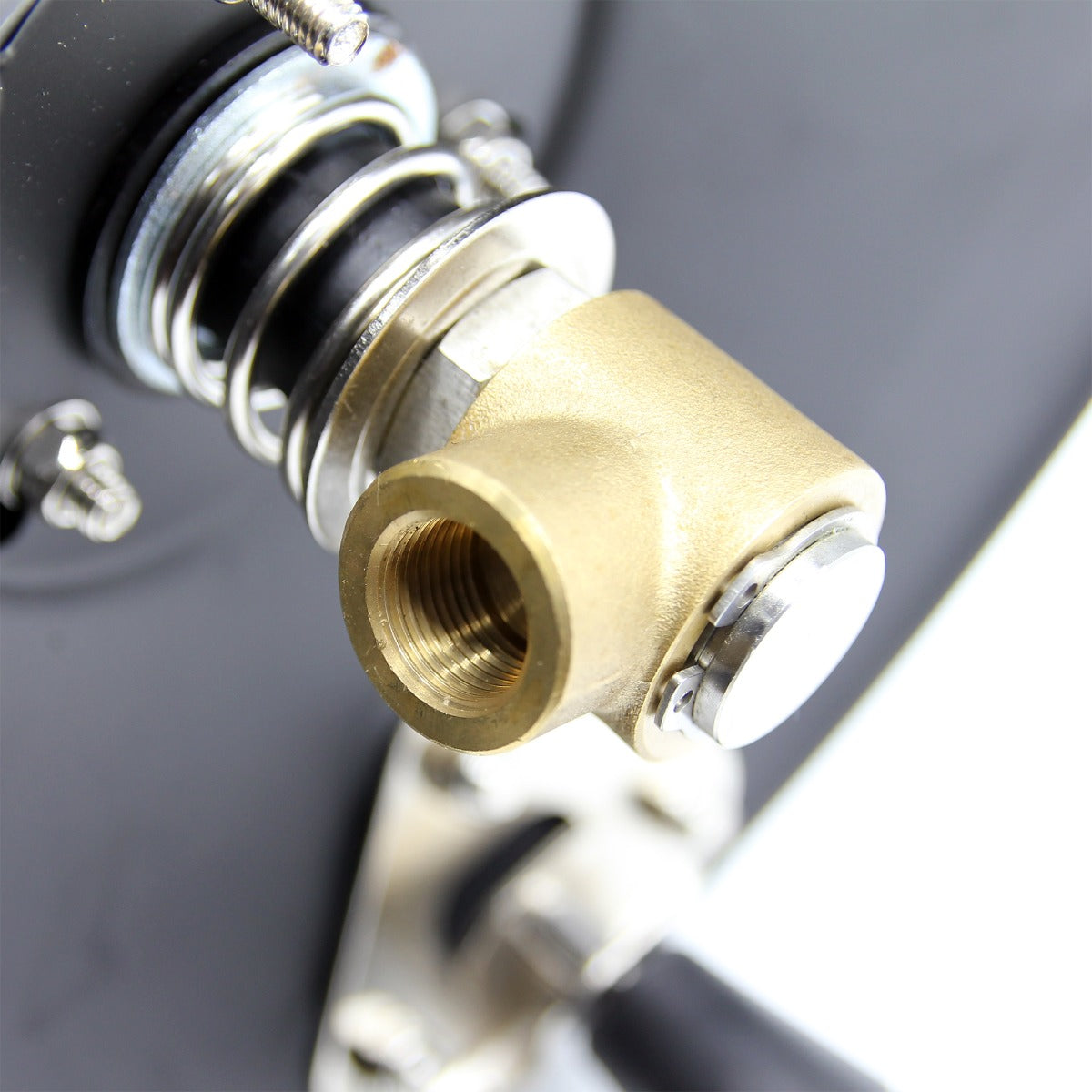

  • Full flow swivel joint
  • Holds up to 30 metres of hose
  • Rated to 275 bar pressure
  • Withstands temperatures up to 70C
  • Screw thread inlet and outlet
Read the full description

Full Description

High pressure hose reel with fixed mounted base, direct hand crank rewind, locking mechanism, full flow swivel joint and 3/8" male screw connector.  Designed to take up to 100ft / 30m high pressure hose (hose not included).

Specification
Max. Capacity: 100ft / 30 metre 3/8" hose
Max. Pressure: 275 Bar
Max. Temperature: 70°C
Inlet: 3/8" Male BSP Screw Thread
Outlet: 3/8" Female BSP Screw Thread

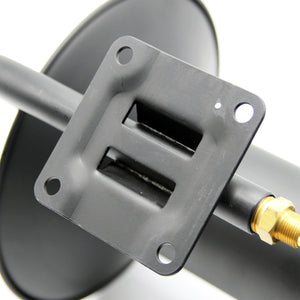

Base Mount Hole Dimensions: 8.5cm x 8.5cm

Tracked UK delivery, or collect eligible orders from our Ilkeston store.

Secure checkout
  • Apple pay
  • Diners club
  • Discover
  • Google pay
  • Klarna
  • Maestro
  • Master
  • Paypal
  • Shopify pay
  • Unionpay
  • Visa

The Drivers HQ

Expert Notes

This fixed base hose reel gives a permanent winding point for anyone using a long pressure washer hose regularly. Bolted to a floor or wall, it takes up to 100ft (30 metres) of 3/8 inch high pressure hose, sold separately, and winds in with a direct hand crank backed by a locking mechanism to hold it steady. A full flow swivel joint lets the hose turn freely without kinking as it unwinds. Rated to 275 bar and 70C, with male and female BSP screw thread connections, it suits a garage or workshop wall rather than a portable setup. Pair it with a compatible high pressure hose and trigger gun for a complete fixed washing station at home.

Perfect For / Suitable Surfaces

  • Garage and workshop walls
  • Fixed floor mounted positions
  • Driveways and patios
  • Vehicle washing areas
  • Domestic pressure washer setups
  • Outdoor and garden cleaning areas
  • Fixed hose storage points

Caution: The hose itself is not included and must be purchased separately, so check the 30 metre (100ft) capacity and screw thread fittings match your setup.

Technical Specifications

Product Type
Fixed Base Hose Reel
Brand
Equip2clean
Capacity
100ft / 30 Metres (Hose Not Included)
Max Working Pressure
275 Bar
Max Temperature
70C
Inlet
3/8" Male BSP Screw Thread
Outlet
3/8" Female BSP Screw Thread
Base Mount Hole Dimensions
8.5cm x 8.5cm
Rewind Mechanism
Direct Hand Crank
Locking Mechanism
Yes
Swivel Joint
Full Flow

How To Use

Using it

  1. Fix the base to a solid floor or wall using the mounting holes.
  2. Connect a compatible 3/8 inch high pressure hose to the reel.
  3. Connect the inlet's male BSP screw thread to your pressure washer.
  4. Pull the hose out to the length needed, using the swivel joint to turn freely.
  5. Engage the locking mechanism to hold the hose reel steady during use.
  6. Turn the hand crank to rewind the hose after use.

Cleaning and storage

  1. Disconnect the pressure washer before rewinding the hose.
  2. Wipe down the reel and base after use.
  3. Check the mounting fixings remain secure over time.
  4. Keep the reel clear of temperatures above its 70C rating.
  5. Store in a dry area to protect the mechanism.

Top Tip: Fix the base securely to a solid surface before use, as this is a fixed mount reel rather than a portable one.

Frequently Asked Questions

Does this come with a hose?

No, it is designed to take up to 100ft (30 metres) of 3/8 inch high pressure hose, which is not included.

What is the maximum pressure rating?

It is rated to a maximum working pressure of 275 bar.

How do you rewind the hose?

It has a direct hand crank for rewinding, along with a locking mechanism to hold it in place.

What connections does it use?

It has a 3/8 inch male BSP screw thread inlet and a 3/8 inch female BSP screw thread outlet.

Can the hose turn freely while unwinding?

Yes, it has a full flow swivel joint to let the hose turn without kinking.

What size are the mounting holes?

The base mount hole dimensions are 8.5cm by 8.5cm.

What temperature can it withstand?

It is rated up to a maximum temperature of 70C.

Do you deliver this reel across the UK?

Yes, The Drivers HQ offers UK-wide delivery.

HQ Suggests Tips & Insights

  1. Buy a compatible 3/8 inch hose separately if needed.
  2. Fix the base to a solid floor or wall.
  3. Check mounting fixings can bear the reel's weight.
  4. Do not exceed 275 bar or 70C.
  5. Use the locking mechanism to hold the reel steady.
  6. Turn the hand crank evenly when rewinding.
  7. Disconnect the washer before rewinding the hose.
  8. Available online with UK-wide delivery from The Drivers HQ.
