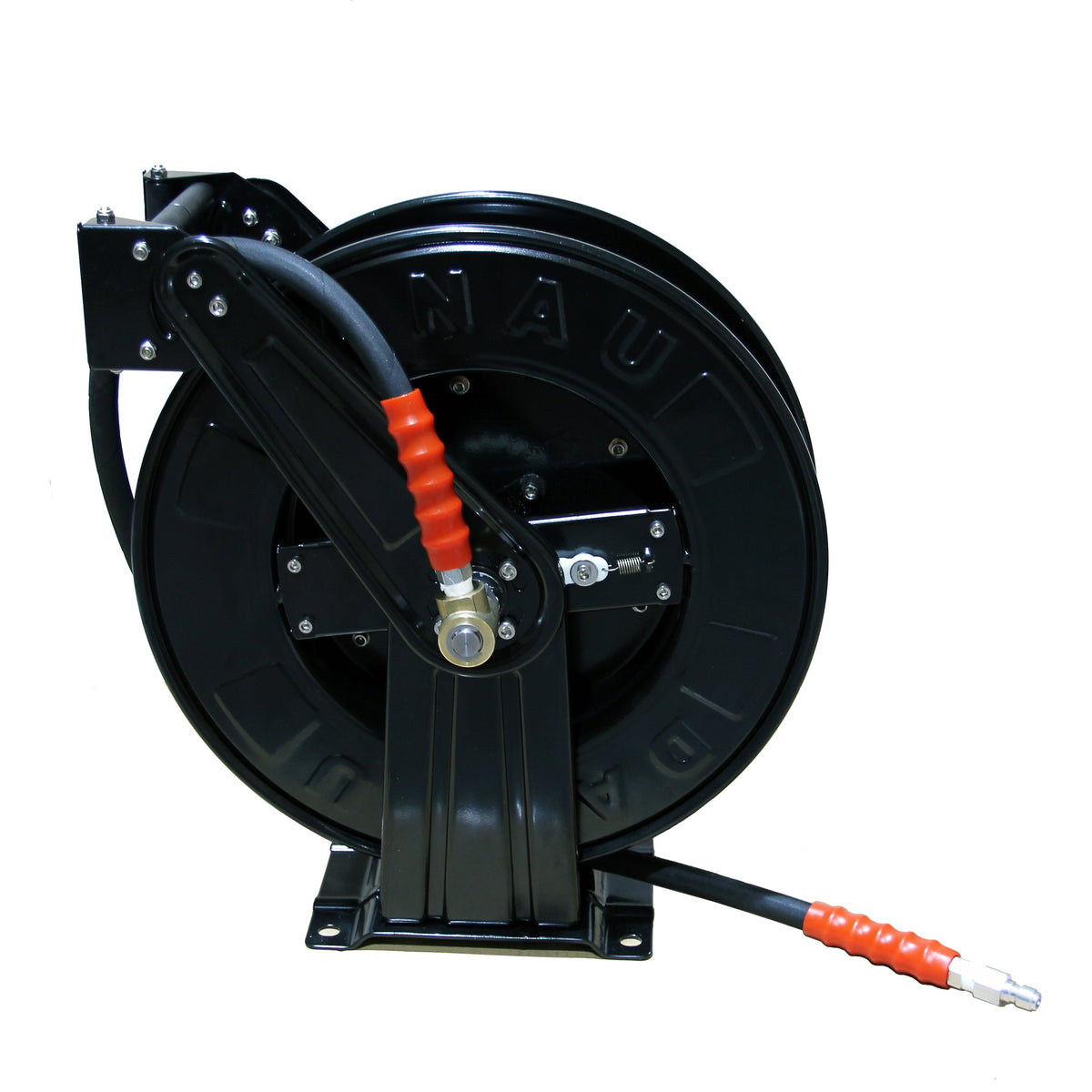

20m Retractable Hose Reel with Hose Tail Hose for High Pressure Washer

Retractable 20m capacity hose reel

20m Retractable Hose Reel with Hose Tail Hose for High Pressure Washer

SKU RetractableHoseReel Ask a question

Ask a question

We reply by email, usually the same working day.

Notify Me When Back in Stock

By asking for an alert you also join The Drivers HQ email list for news and offers. You can unsubscribe at any time.

£325.00

In stock

Earn 325 HQ Rewards points How it works
20m Retractable Hose Reel with Hose Tail Hose for High Pressure Washer 20m Retractable Hose Reel with Hose Tail Hose for High Pressure Washer £325.00

Recommended with this

Delivery Only · No Click & Collect Order online and we’ll get it to your door.

Retractable high pressure hose reel complete with mounting base and 1.3m short hose tail.

  • Retractable reel with mounting base
  • Holds up to 20 metres of hose
  • Includes 1.3 metre hose tail
  • Rated to 400 bar pressure
  • Withstands temperatures up to 150C
  • Floor or wall mounting plate
  • Quick release inlet connection
  • Screw thread outlet fitting
Read the full description

Full Description

Retractable high pressure hose reel complete with mounting base and 1.3m short hose tail.

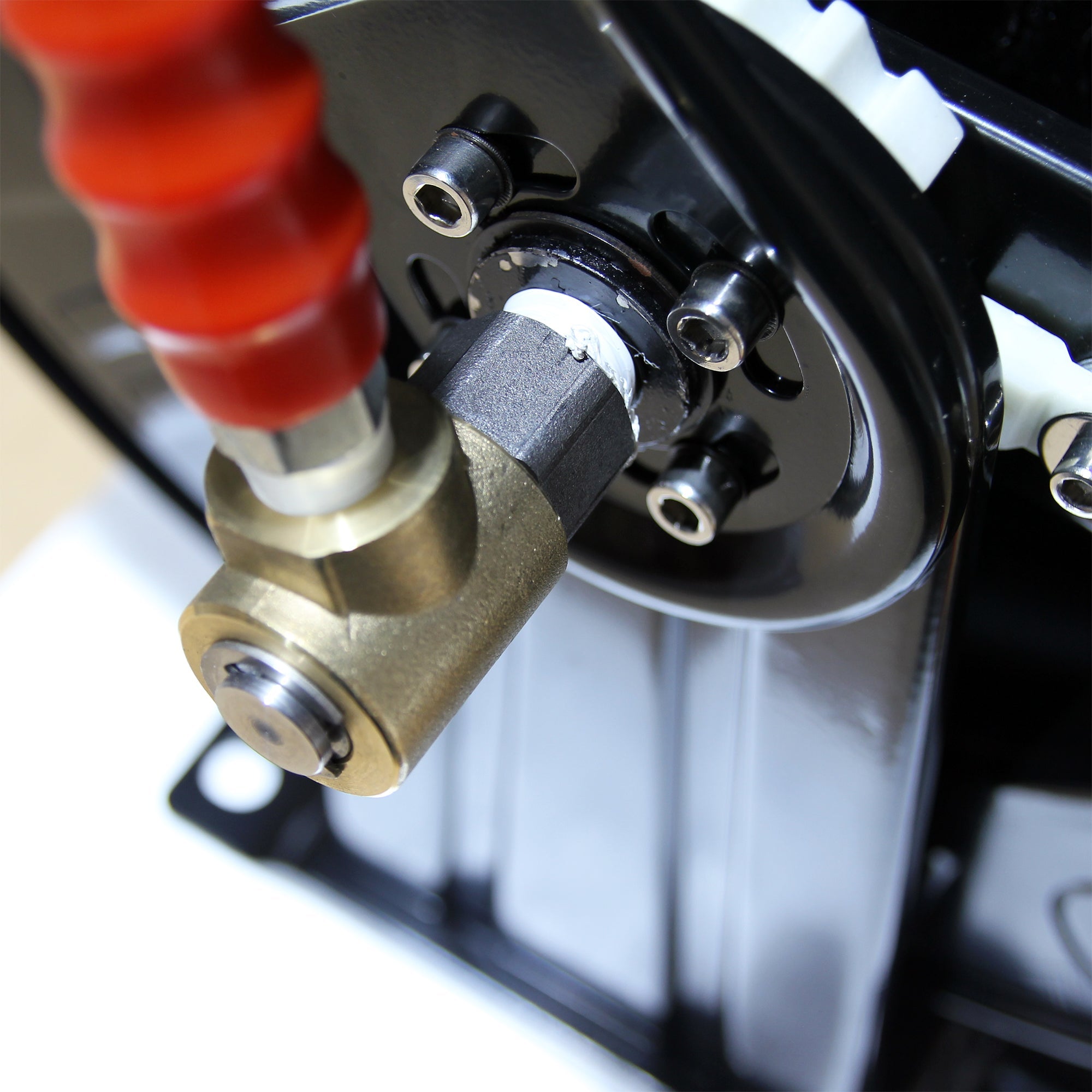

Designed to take a 20m high pressure hose (not included) and features a mounting plate for floor or wall mounting. Has a 14.8mm (3/8") male quick release inlet and a 3/8" male screw thread outlet.
Dimensions.

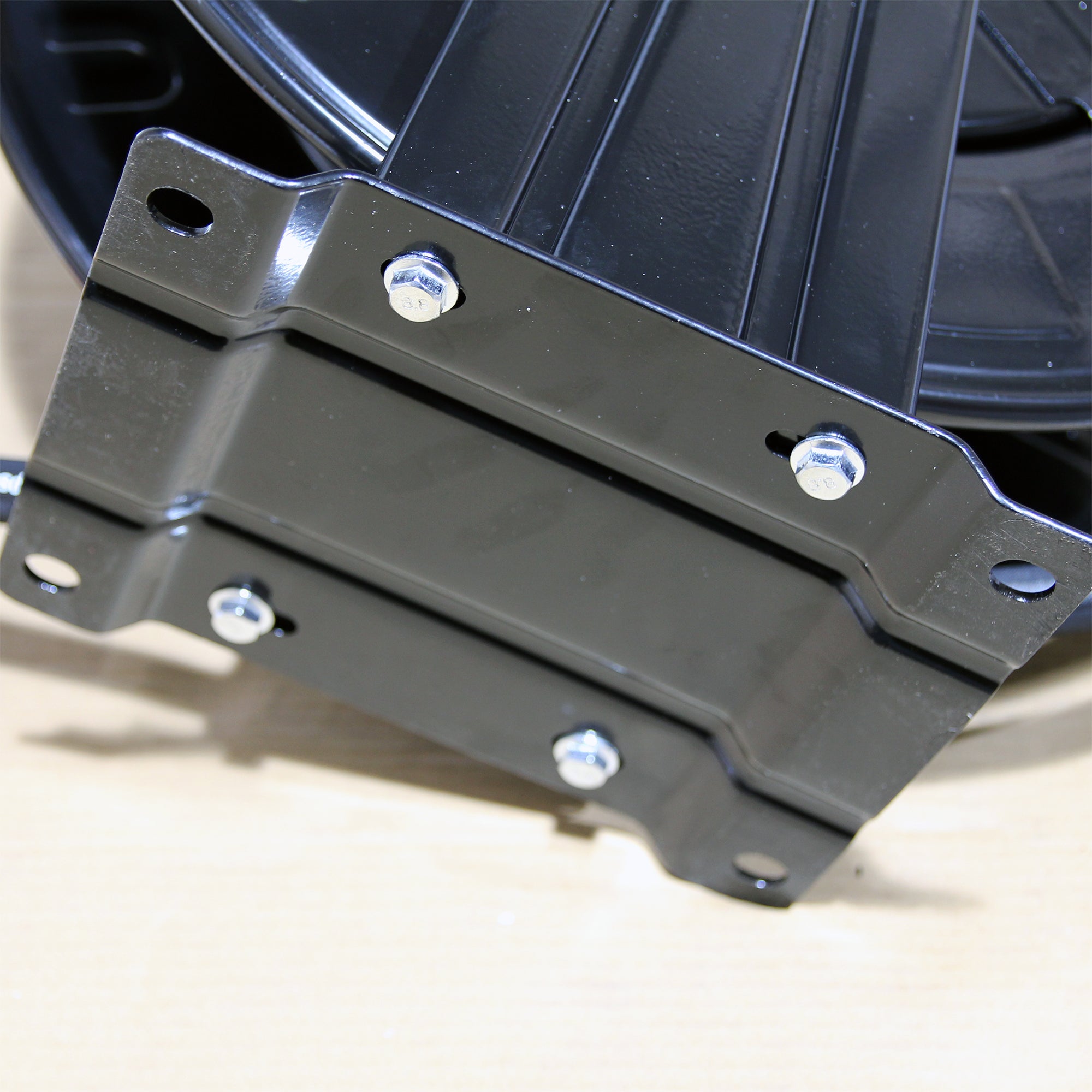

Mounting plate: 24cm * 19cm square
Drum diameter: 45cm
Height: 48cm to Bracket hose outlet

CAPACITY: 20 Metres
MAX WORKING PRESSURE: 400 Bar / 5800 PSI
MAX TEMPERATURE: 150C
INLET: 14.8mm (3/8") male quick release
OUTLET: 3/8" male screw thread

Tracked UK delivery, price shown at checkout.Delivery details

Delivery and collection

Full Delivery Information

Buying for someone? Gift cards from £30, by email or post.Gift cards

Secure checkout
  • Apple pay
  • Diners club
  • Discover
  • Google pay
  • Klarna
  • Maestro
  • Master
  • Paypal
  • Shopify pay
  • Unionpay
  • Visa

Key features

  • 20m Capacity
  • 400 Bar Rated
  • Hose Tail Included
  • Quick Release Inlet
  • Wall Or Floor Mount

The Drivers HQ

Expert Notes

This retractable hose reel gives a fixed washing point for anyone tired of coiling a loose hose by hand. It mounts to a floor or wall and takes up to 20 metres of high pressure hose, which is sold separately, alongside a 1.3 metre hose tail supplied with the reel. Rated to 400 bar and 150C, it connects via a 14.8mm quick release inlet and a 3/8 inch screw thread outlet, matching common pressure washer fittings. The reel's 45cm drum and 48cm height suit a garage wall or fixed floor position rather than a portable setup. It pairs well with a compatible high pressure hose and trigger gun for a complete fixed washing station, matched to your own machine's fittings.

Perfect For / Suitable Surfaces

  • Garage and workshop walls
  • Floor mounted installations
  • Driveways and patios
  • Vehicle washing areas
  • Domestic pressure washer setups
  • Outdoor and garden cleaning areas
  • Fixed hose storage points

Caution: The hose itself is not included and must be purchased separately, so check the 20 metre capacity and fittings match your existing setup.

Technical Specifications

Product Type
Retractable Hose Reel
Brand
Equip2clean
Capacity
20 Metres (Hose Not Included)
Max Working Pressure
400 Bar / 5800 PSI
Max Temperature
150C
Inlet
14.8mm (3/8") Male Quick Release
Outlet
3/8" Male Screw Thread
Mounting
Floor Or Wall Mount
Hose Tail Included
1.3m
Mounting Plate Dimensions
24cm x 19cm
Drum Diameter
45cm
Height To Bracket Outlet
48cm

How To Use

Using it

  1. Mount the reel to a floor or wall using the mounting plate.
  2. Connect a compatible 20 metre high pressure hose to the reel.
  3. Connect the male quick release inlet to your pressure washer.
  4. Connect the hose tail's screw thread outlet to your hose.
  5. Pull out the hose to the length needed for the job.
  6. Rewind the hose onto the drum after use.

Cleaning and storage

  1. Disconnect the pressure washer before winding the hose away.
  2. Wipe down the drum and mounting plate after use.
  3. Check the mounting fixings remain secure over time.
  4. Keep the reel clear of temperatures above its 150C rating.
  5. Store in a dry area to protect the mounting plate.

Top Tip: Fit the mounting plate securely to a solid floor or wall before connecting your hose, as the reel is not portable.

Performance Benefits

  • Handles high pressure washing loads
  • Copes with hot water use
  • Keeps a hose tidy when stored
  • Mounts securely to floor or wall
  • Ready to connect via quick release
  • Comes with a ready hose tail

Frequently Asked Questions

Does this come with a hose?

No, the reel is designed to take a 20 metre high pressure hose which is not included.

What is the maximum pressure rating?

The reel is rated to a maximum working pressure of 400 bar (5800 PSI).

What connections does the reel use?

It has a 14.8mm (3/8 inch) male quick release inlet and a 3/8 inch male screw thread outlet.

Can it be wall mounted?

Yes, the mounting plate is designed for either floor or wall mounting.

What size is the mounting plate?

The mounting plate measures 24cm by 19cm.

Does it include a hose tail?

Yes, it comes complete with a 1.3 metre short hose tail.

How big is the drum?

The drum measures 45cm in diameter, with a height of 48cm to the bracket hose outlet.

Do you deliver this reel across the UK?

Yes, The Drivers HQ offers UK-wide delivery.

HQ Suggests Tips & Insights

  1. Buy a compatible 20 metre hose separately if needed.
  2. Fix the mounting plate to a solid surface.
  3. Check floor or wall fixings can bear the reel's weight.
  4. Do not exceed 400 bar or 150C.
  5. Wind the hose in evenly to avoid tangles.
  6. Disconnect the washer before rewinding the hose.
  7. Keep the drum area clear for easy winding.
  8. Available online with UK-wide delivery from The Drivers HQ.
