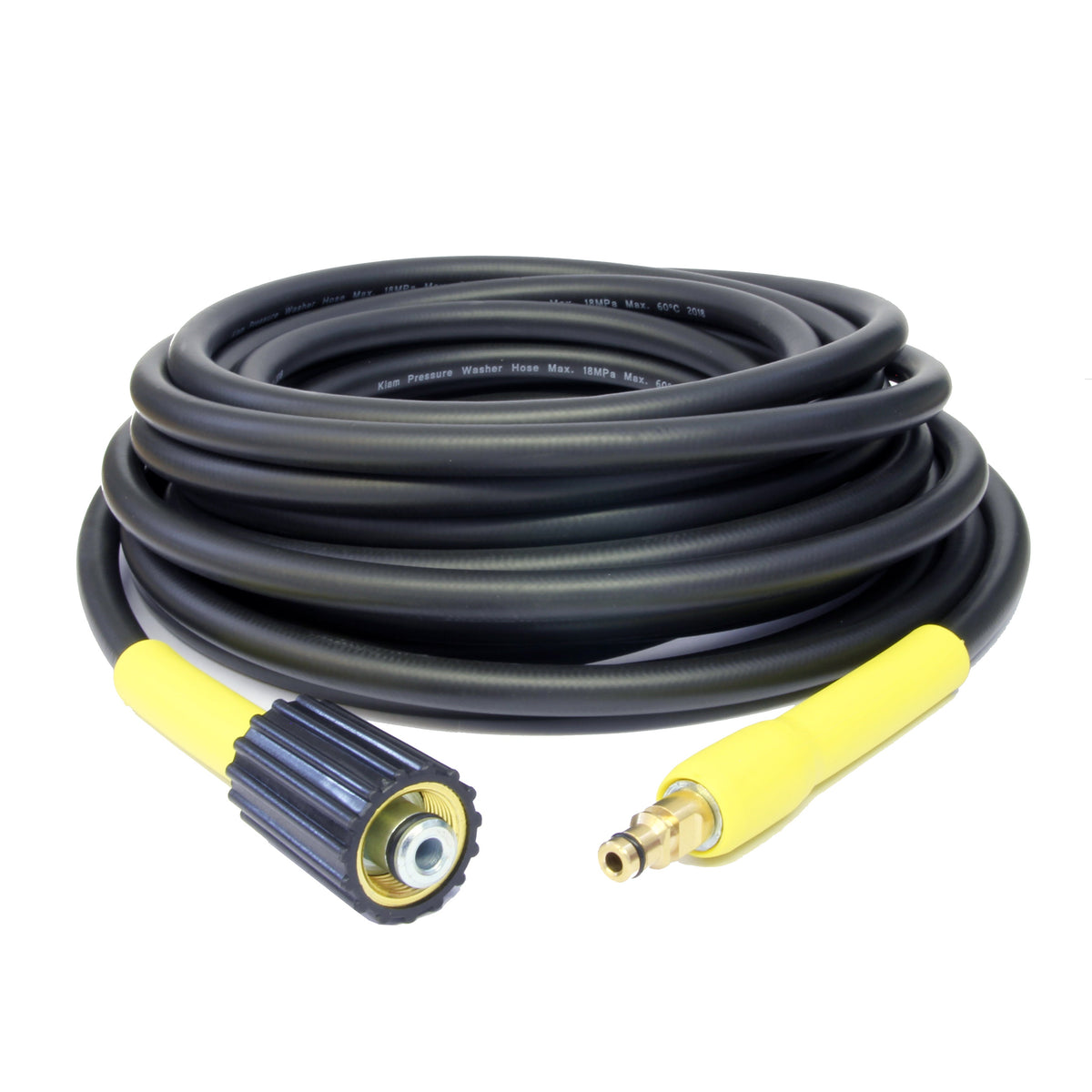

Karcher Click Bayonet - M22 Female K series Domestic Hose

M22 screw hose for Karcher K series machines

Karcher Click Bayonet - M22 Female K series Domestic Hose

SKU 10mKarcherM22ClickHose Ask a question

Ask a question

We reply by email, usually the same working day.

Notify Me When Back in Stock

By asking for an alert you also join The Drivers HQ email list for news and offers. You can unsubscribe at any time.

£24.99

In stock

Length 10 Metres

Earn 24 HQ Rewards points How it works

Karcher Click Bayonet - M22 Female K series Domestic Hose Karcher Click Bayonet - M22 Female K series Domestic Hose £24.99

Complete your setup

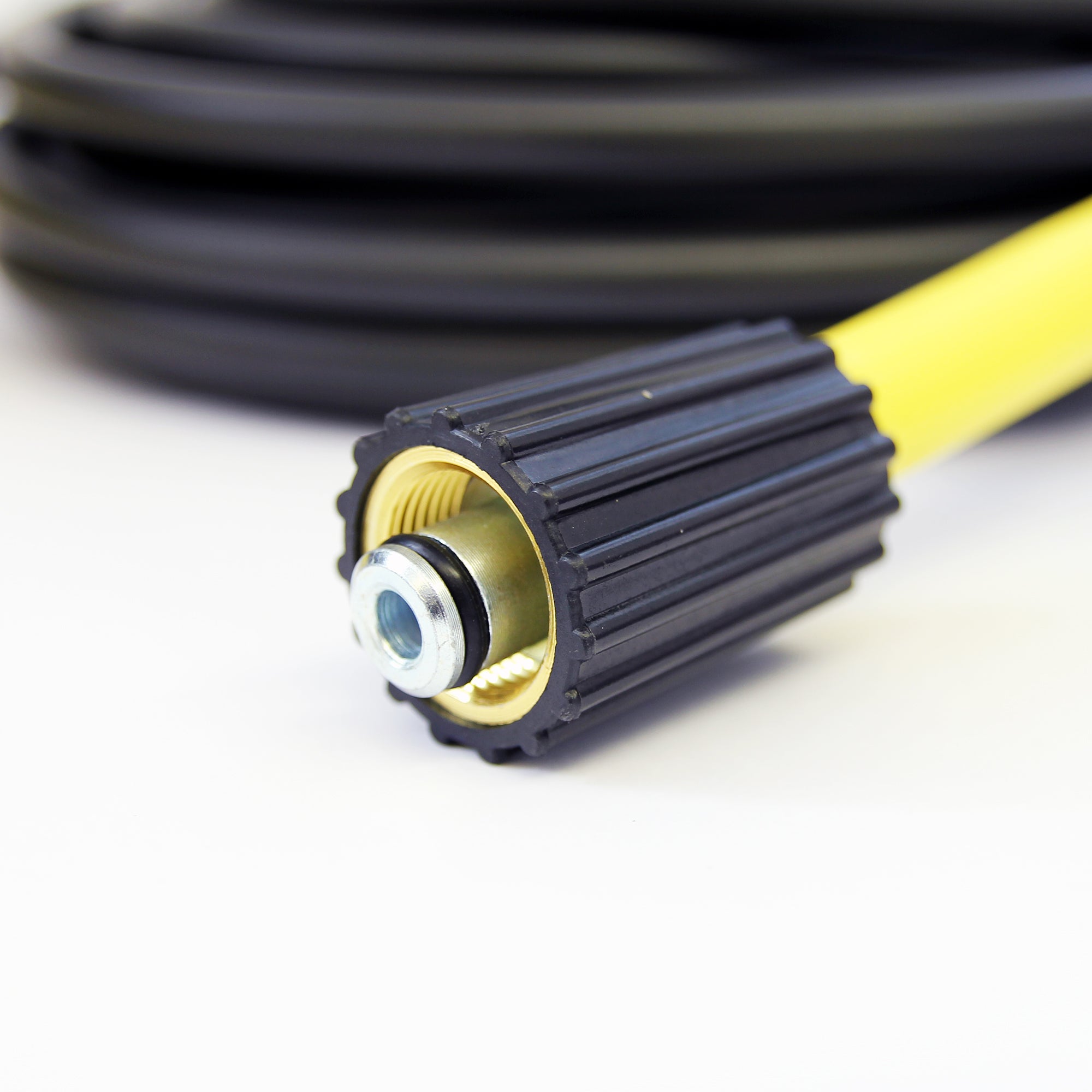

  • M22 brass screw coupling to machine

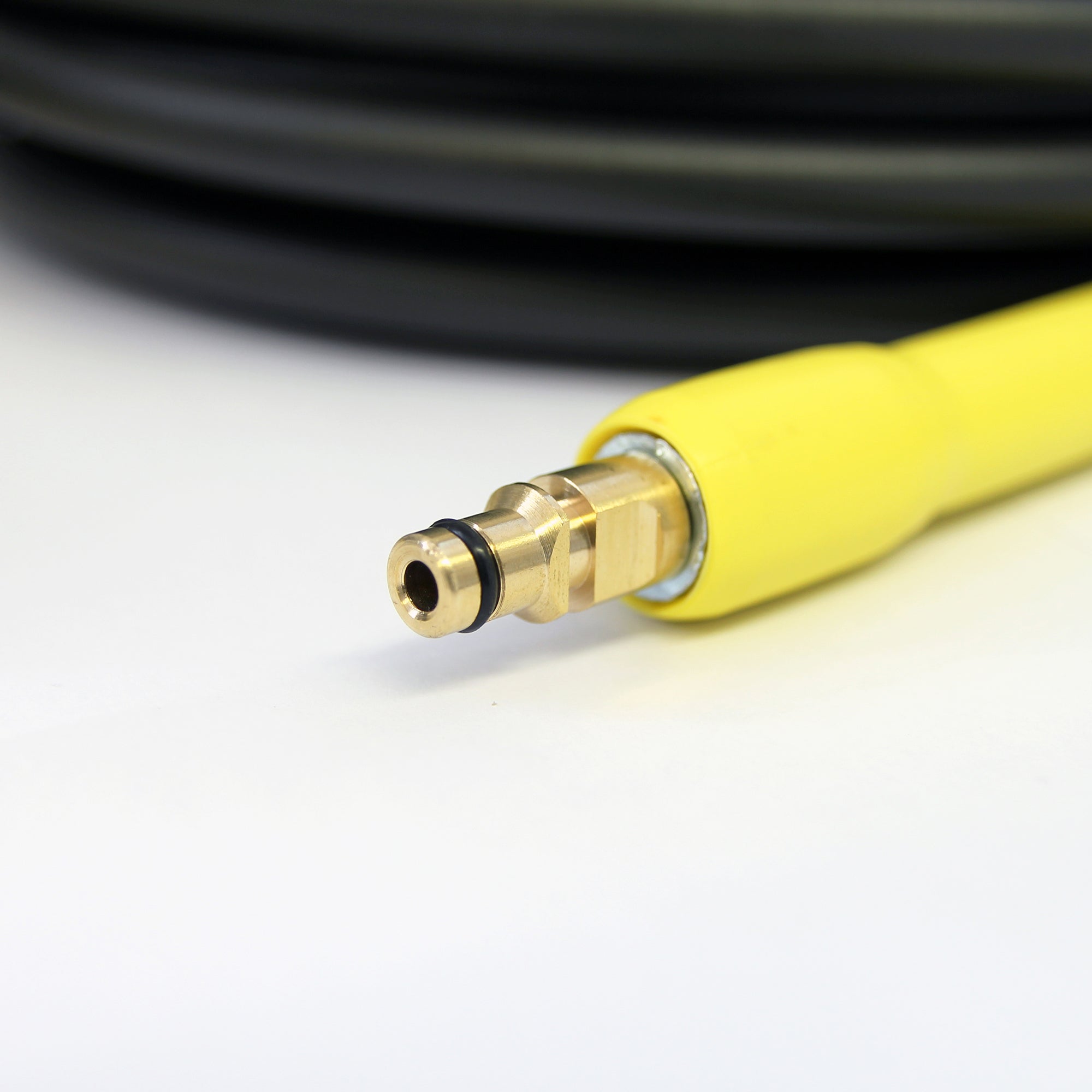

  • Click bayonet coupling to trigger gun
  • Heavy duty protective cover sleeving
  • 1/4in reinforced braided hose
  • Rated to 180 Bar
  • Fits new type Karcher K series machines

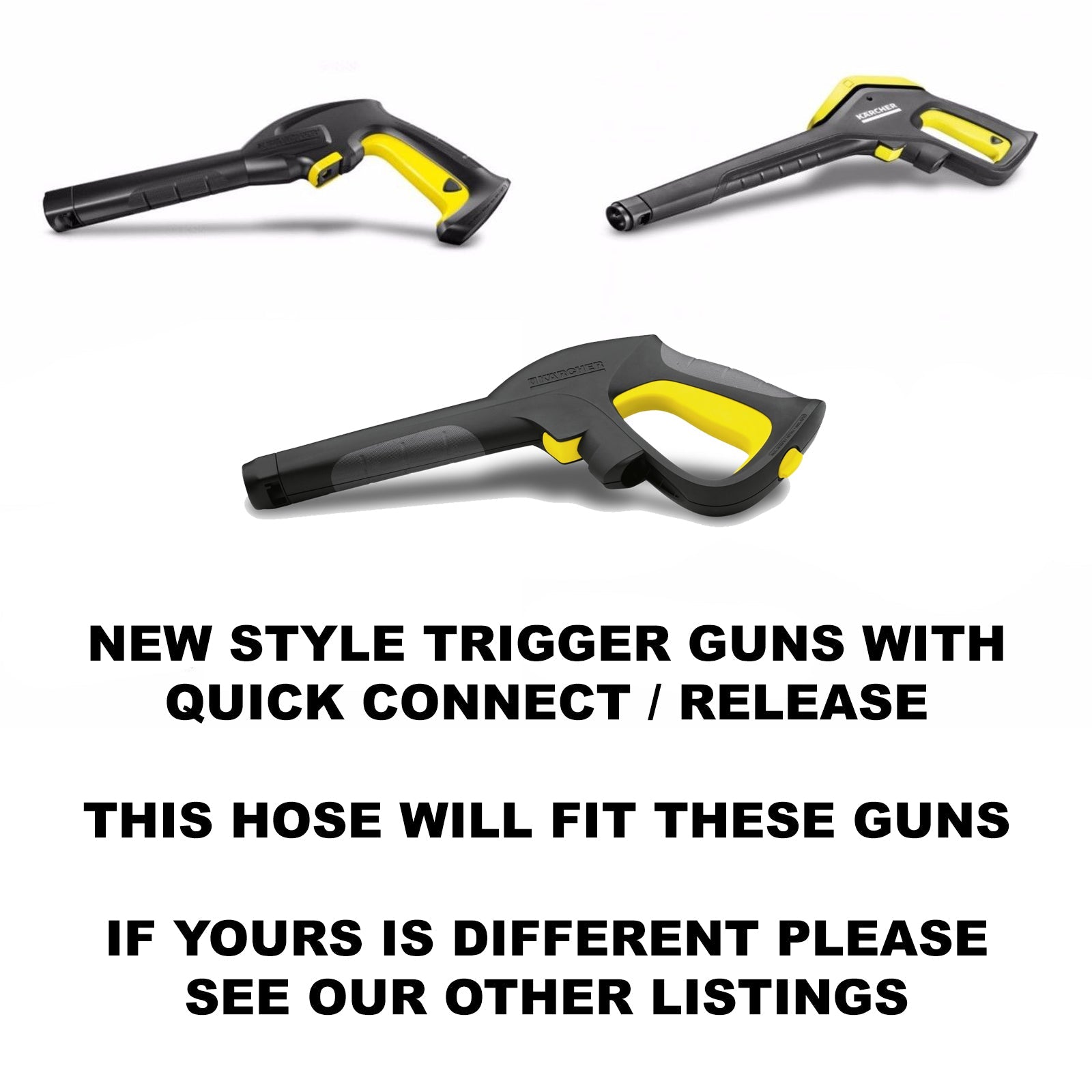

  • Suits yellow button release trigger guns
  • Available in four lengths
Read the full description

Full Description


Not the manufacturers original, this ones better!

Comes with a professional Karcher style M22 brass screw coupling to fit onto your washer. Also features a heavy duty cover sleeving to protect against being dragged along the floor, etc. The hose is the HIGHEST QUALITY type hose for extra durability and long life.

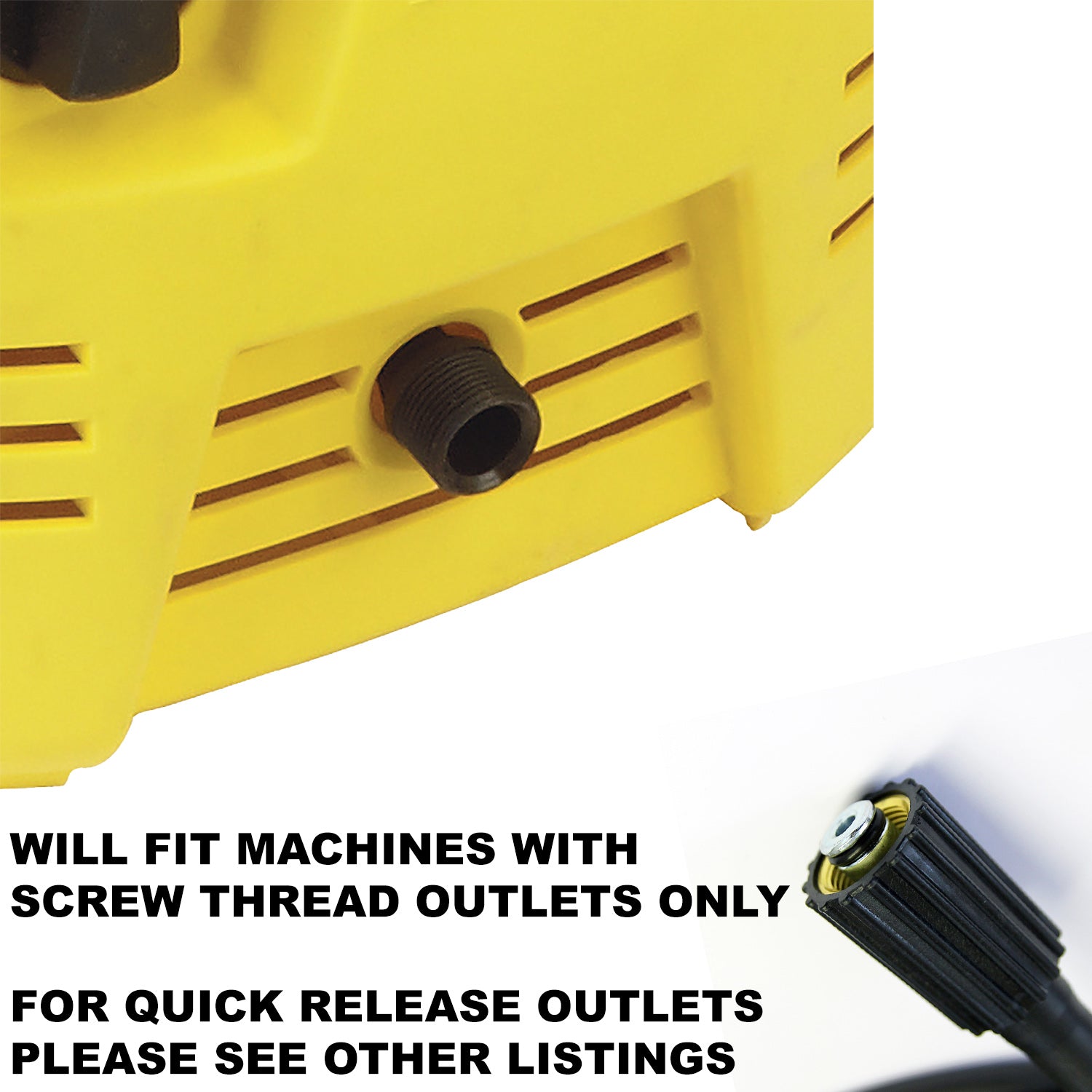

This hose will suit your new type Karcher K series domestic pressure washer (see pictures). This is the correct hose for you if your hose connects to the pressure washer by screwing on and your trigger has a yellow button (not a black clip) to release the hose.

NOTE: This hose does NOT suit the older Karcher machines with a Black C Clip (see pictures). Please ensure these connections are compatible with your machine and gun.

If unsure please contact us on 01332 480571.

TYPE: 1/4" High Pressure Reinforced Braided Hose
MAX WORKING PRESSURE: 180 Bar / 2610 PSI
MAX TEMPERATURE: 60C
COUPLING (TO MACHINE): M22 Female
COUPLING (TO TRIGGER GUN): Click Bayonet

Tracked UK delivery, price shown at checkout.Delivery details

Delivery and collection

Full Delivery Information

Buying for someone? Gift cards from £30, by email or post.Gift cards

Secure checkout
  • Apple pay
  • Diners club
  • Discover
  • Google pay
  • Klarna
  • Maestro
  • Master
  • Paypal
  • Shopify pay
  • Unionpay
  • Visa

Key features

  • M22 Screw Coupling
  • Click Bayonet Trigger
  • 180 Bar Rated
  • K Series Fit

The Drivers HQ

Expert Notes

This Karcher K series hose uses an M22 female screw thread coupling at the machine end and a click bayonet coupling at the trigger gun end, matching the newer style of K series domestic pressure washer where the trigger has a yellow release button rather than a black clip. It is a 1/4in high pressure reinforced braided hose rated to 180 Bar (2610 PSI) and 60C, with a heavy duty cover sleeve to protect it from dragging along the ground. It is sold in 5m, 10m, 15m and 20m lengths. Check the outlet and trigger type on your own machine before ordering, since it is not designed for older Karcher machines with a black C clip trigger.

Perfect For / Suitable Surfaces

  • Karcher K series pressure washers
  • M22 female screw machine outlets
  • Click fit trigger guns
  • Driveways
  • Patios
  • Cars and vans

Caution: Check your machine uses a screw on M22 outlet and your trigger gun has a yellow release button, as this hose does not suit older black C clip Karcher machines.

Technical Specifications

Product Type
Pressure Washer Hose
Brand
Equip2clean
Type
1/4in Reinforced Braided Hose
Available Lengths
5m, 10m, 15m, 20m
Max Working Pressure
180 Bar / 2610 PSI
Max Temperature
60C
Compatibility
New Type Karcher K Series Domestic Machines
Not Suitable For
Older Karcher Machines With Black C Clip
Coupling To Machine
M22 Female Screw Thread
Coupling To Trigger Gun
Click Bayonet

How To Use

Fitting

  1. Confirm your machine has a screw on M22 female outlet.
  2. Confirm your trigger gun uses the click bayonet fitting with a yellow release button.
  3. Screw the M22 coupling onto the machine outlet by hand.
  4. Push the click bayonet end onto the trigger gun until it clicks.
  5. Run water through briefly to check both connections for leaks.

Care and checks

  1. Hand tighten the M22 coupling, do not overtighten with tools.
  2. Press the release catch before disconnecting the click bayonet end.
  3. Coil the hose loosely after use to avoid kinks.
  4. Check the screw thread and click coupling for wear before each use.

Top Tip: Tighten the M22 coupling by hand only, since overtightening with tools can damage the thread or seal.

Performance Benefits

  • Screws securely onto the machine outlet
  • Clicks onto the trigger gun in seconds
  • Handles pressure up to 180 Bar
  • Cover sleeve resists dragging and wear
  • Flexible hose is easy to coil
  • Feeds water to the trigger gun

Frequently Asked Questions

What lengths is this hose available in?

It comes in 5m, 10m, 15m and 20m lengths.

How does it connect to the machine?

It has an M22 female screw thread coupling that screws onto the machine outlet.

How does it connect to the trigger gun?

It has a click bayonet coupling that pushes onto the trigger gun until it clicks.

Will it fit my Karcher machine?

It suits the new type Karcher K series domestic machines where the trigger gun has a yellow release button.

Does it fit older Karcher machines?

No, it does not suit older Karcher machines with a black C clip trigger.

What is the maximum pressure rating?

It is rated to a maximum working pressure of 180 Bar (2610 PSI).

Is the hose reinforced?

Yes, it is a 1/4in high pressure reinforced braided hose with a heavy duty protective cover sleeve.

What should I pair it with?

Pair it with a compatible click fit trigger gun and a Karcher K series machine with an M22 outlet.

HQ Suggests Tips & Insights

  1. Check your machine has a screw on M22 outlet.
  2. Confirm your trigger gun has a yellow release button.
  3. Hand tighten the M22 coupling, do not force it.
  4. Push the click end on until it clicks.
  5. Coil the hose loosely to avoid kinks.
  6. Check couplings for wear before each use.
  7. Not suitable for older black C clip Karcher machines.
  8. Available online with UK-wide delivery from The Drivers HQ.
