Active Pressure Washer Wall Mount Active Pressure Washer Wall Mount £239.99
Click & Collect: Derby · FreeMost eligible orders are ready within 5 minutes during opening times. Please wait for your collection-ready confirmation before travelling. Click & Collect: Derby Not available for this option. Options that can be collected show it here. How it works

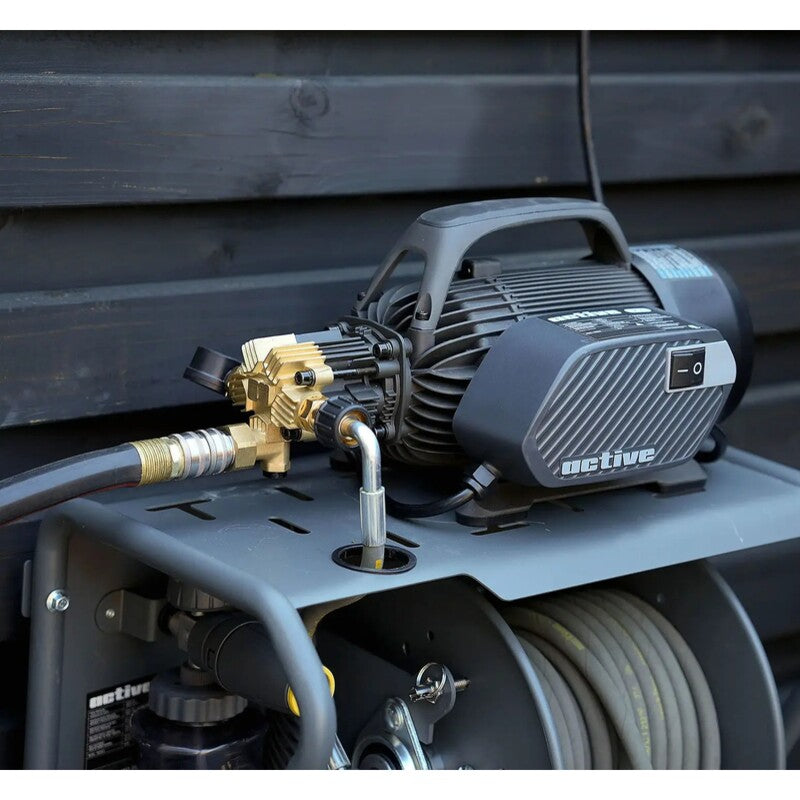

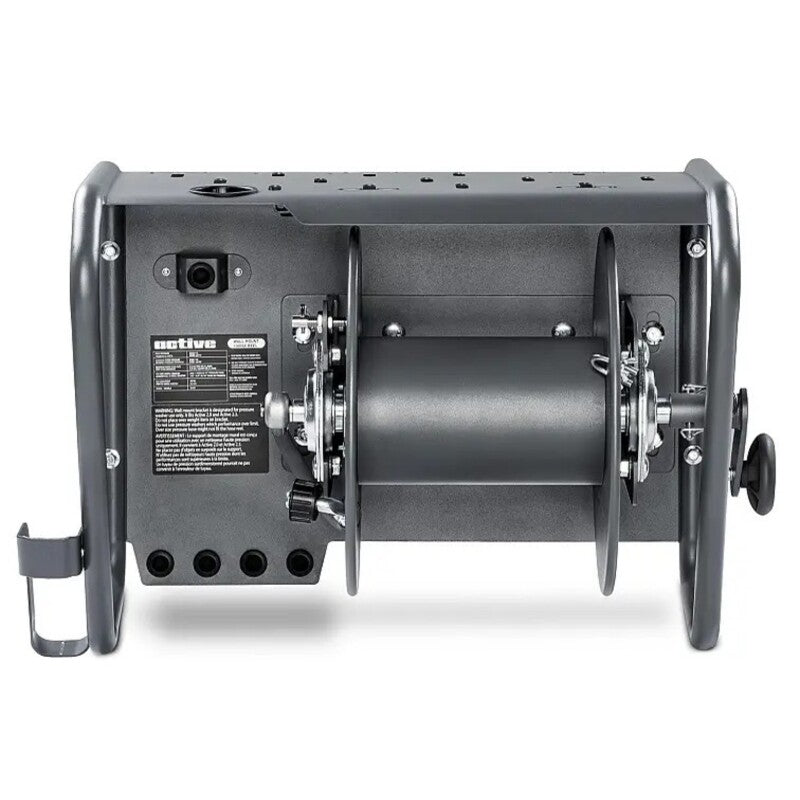

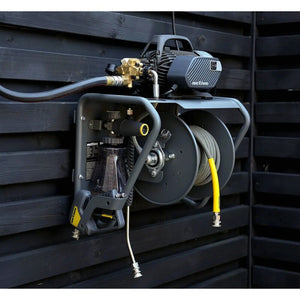

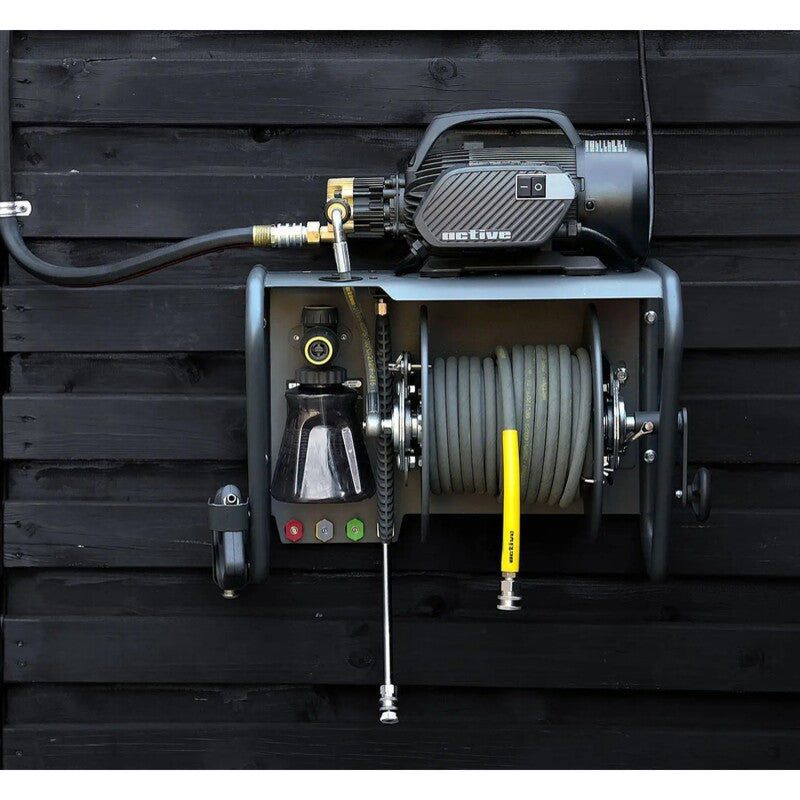

The Active Pressure Washer Wall Mount is a powder-coated steel wall cage that holds your pressure washer off the floor, with a hose reel fitted to the frame. It keeps the washer, hose and gun in one tidy place in a garage, workshop or detailing studio, and is designed for Active pressure washers.

  • Hose reel and wall mount in one kit
  • Holds up to 100 ft of 5/16" hose
  • Accessory mounts take 1/4" male plugs
  • Hand crank with lock pin
  • 304 stainless steel reel valve
  • Pre-installed reel on a metal frame
  • Maximum loading capacity of 40kg
  • 2-year warranty with product registration
Read the full description

Full Description

The Active Pressure Washer Wall Mount is a powder-coated steel wall cage that holds your pressure washer off the floor, with a hose reel fitted to the frame. It keeps the washer, hose and gun in one tidy place in a garage, workshop or detailing studio, and is designed for Active pressure washers.

The reel takes up to 100ft of 5/16in pressure hose, has a 304 stainless steel reel valve and a lock pin, and comes with a jumper hose to the pressure washer. The cage carries up to 40kg, and its open frame makes hose and cable routing easy. Some assembly is needed: the wall plate, hand crank and gun holder are fitted by you, and the hose clip is adjusted to suit.

Hose reel

  • Inlet: 3/8in QC female coupler; outlet: M22 x 14mm
  • Extension hose pre-installed
  • Release the lock pin before turning the reel
  • Outer disc 300mm, inner barrel 120mm, reel width 200mm
  • Holds up to 100ft of 5/16in pressure hose

Frame and fixings

  • Hose reel pre-installed on the frame; wall mounting, gun holder and hose clip set up by you
  • Cage 525 x 350 x 405mm (W x D x H), max load 40kg
  • Mounting plate bolt layout 16in x 5.6in, 8mm holes
  • 4 x 6 x 30mm screws (plate to wall), 4 x M8 x 20mm bolts (mount to plate), 2 x M5 x 14 bolts (gun holder)

In the box

  • Wall cage with hose reel
  • Hand crank with lock pin
  • Mounting plate
  • Gun holder
  • Hardware kit
  • Jumper hose to the pressure washer (M22 x 14mm female)

The hose reel and wall mount carry a 2-year warranty, which needs registering: keep your proof of purchase, the store name and your order number.

More in Pressure Washers and from Active.

Royal Mail Tracked 24 from £3.95, free on orders from £100.Delivery details

Delivery and collection

Buying for someone? Gift cards from £30, by email or post.Gift cards

Secure checkout
  • Apple pay
  • Diners club
  • Discover
  • Google pay
  • Klarna
  • Maestro
  • Master
  • Paypal
  • Shopify pay
  • Unionpay
  • Visa

Key features

  • Hose Reel Combo
  • 40kg Load Rating
  • M22-14mm Jumper Hose
  • 304 Stainless Valve
  • 2 Year Warranty

The Drivers HQ

Expert Notes

The Active Pressure Washer Wall Mount is a hose reel and wall mount combination that lifts the pressure washer, hose and accessories off the garage floor. The reel comes pre-installed on a metal frame, with a 304 stainless steel reel valve, a hand crank with lock pin and room for up to 100 ft of 5/16" pressure hose. The frame fixes to a 16" backing plate, carries up to 40kg and has dedicated slots for a gun, foam cannon, lance and 4 nozzles. Active optimises it for the Active 2.0 and 2.3, and the supplied jumper hose has an M22 x 14mm female fitting. Pair it with a steel braided pressure hose and your foam cannon for a tidy wash station.

The Drivers HQ TeamDetailing Product Store, Derby

Perfect For / Suitable Surfaces

  • Garage walls
  • Detailing studios
  • Workshops
  • Active 2.0 and 2.3 pressure washers
  • Pressure washer hoses
  • Guns, lances and foam cannons
  • Nozzle storage

Caution: Fix the mounting plate only to a wall that can carry the 40kg rated load, using fixings suited to that wall.

Technical Specifications

Product Type
Pressure Washer Hose Reel And Wall Mount
Brand
Active
Outlet
M22 x 14mm
Compatibility
Optimised For Active 2.0 And 2.3 Pressure Washers
Pack Contents
Hose Reel On Metal Frame, Hand Crank With Lock Pin, Mounting Plate, Gun Holder, Hardware Kit, Jumper Hose
Warranty
2 Years, Registration Required
Inlet Fitting
3/8" Quick Connect Female Coupler
Jumper Hose
5/16" Diameter, M22 x 14mm Female
Hose Capacity
100 ft Of 5/16" Pressure Hose
Reel Dimensions
300mm Outer Disc, 120mm Inner Barrel, 200mm Width
Cage Dimensions
525 x 350 x 405mm (W x D x H)
Max Loading Capacity
40kg
Colour
Yellow

How To Use

Fitting

  1. Check the wall is solid and that no pipes or cables run behind the fixing points.
  2. Fix the mounting plate to the wall with the four 6 x 30mm screws, using wall fixings suited to the wall material.
  3. Secure the frame to the mounting plate with the four M8 x 20mm bolts.
  4. Fit the hand crank and lock it with its pin, then fix the gun holder to the frame with the two M5 x 14 bolts.
  5. Connect the supplied jumper hose, which has an M22 x 14mm female fitting, between your pressure washer and the reel as the Active manual shows.
  6. Adjust the hose clamp and hose clip to secure your pressure hose, then release the lock pin before turning the reel.

Care and checks

  1. Release pressure from the system before winding the hose back onto the reel.
  2. Re-engage the reel lock pin once the hose is wound in or pulled out to length.
  3. Keep the total load on the frame within its 40kg maximum loading capacity.
  4. Check the wall fixings and frame bolts regularly and retighten any that have loosened.
  5. Look for drips at the jumper hose and reel connections before each wash.
  6. Wipe grit and chemical residue off the frame, reel and holders with a damp cloth.
  7. Register the product and keep your proof of purchase, as the 2-year warranty requires registration.

Top Tip: Plan the mounting height so the crank is easy to turn and the hose runs cleanly to your wash area.

Performance Benefits

  • Keeps hoses tidy and off the floor
  • Parks gun, lance, foam cannon and nozzles
  • Hand crank winds and unwinds hose
  • Mounts on a 16 inch backing plate
  • Optimised for Active 2.0 and 2.3
  • Corrosion-resistant materials for regular use

Frequently Asked Questions

What is included in the box?

The kit includes the hose reel pre-installed on its metal frame, a hand crank with lock pin, a mounting plate, a gun holder, a hardware kit and a jumper hose to the pressure washer. Active accessories such as the gun, lance and foam cannon are sold separately.

Which pressure washers does it suit?

Active optimises the kit for the Active 2.0 and 2.3 pressure washers and accessories, but it can store any washer with an M22-14mm outlet. For a machine with an M22-15mm outlet, Active says you need a separate M22-15 jumper hose.

How much hose does the reel hold?

Active's specification gives a maximum of 100 ft of 5/16" pressure hose. The reel has a 300mm outer disc, a 120mm inner barrel and a 200mm width.

How big is it and how much weight can it carry?

The metal cage measures 525 x 350 x 405mm (width x depth x height) and has a maximum loading capacity of 40kg.

What accessories can I store on it?

It has dedicated slots for a pressure washer gun, foam cannon, lance and 4 nozzles. Any accessory with a 1/4" male plug can be parked in the accessory mounts.

Does it need assembling?

Yes, some assembly is needed. The reel comes pre-installed on the frame, but you fit it to the wall, install the hand crank and gun holder, and adjust the hose clamp and hose clip.

Is there a warranty?

Yes, the hose reel and wall mount combo has a 2-year warranty, and Active requires you to register it. Keep your proof of purchase, store name and order ID for support.

HQ Suggests Tips & Insights

  1. Check for hidden pipes and cables before drilling any fixing holes.
  2. Choose wall fixings suited to brick, block or timber stud walls.
  3. Release the reel lock pin before turning the crank.
  4. Depressurise the hose before winding it onto the reel.
  5. Keep the total load on the unit within its 40kg maximum.
  6. Park foam cannons and lances with 1/4" plugs in the accessory mounts.
  7. Register the product, as Active's 2-year warranty requires it.
  8. Retighten wall fixings and frame bolts if the unit starts to move.

The Brand

Active

Active is the pressure washer brand of Active Products Inc., a Canadian company led by its founder and president, James Hou. It builds compact electric pressure washers around car enthusiasts and their feedback. Its own timeline runs from the development and patent of its 5-piston pump in 2018, through direct sales of the VE52 and VE51 washers in North America from 2020 and the launch of the Active 2.0 in 2022, to the swivel gun in spring 2024, the foam cannon, lance and hose later that year, and the Active 2.3 Compact and reels and storage in 2025. Active sets its washers at about 1000 PSI with as much water flow as possible, which it sees as the ideal balance for washing cars safely.

At The Drivers HQ we stock Active online with UK delivery and in our Derby shop. Popular choices include the Active 2.0 Premium Kit, the Active 3.0 machine and the Active Premium Snow Foam Cannon.

Active Premium Pressure Washer Snow Foam Cannon with its four spare nozzles and mesh filter on a black display plinth

Active 2.0, 2.3 and 3.0 pressure washers

Active 2.0. The compact machine, made for DIY detailers and hobbyists: a patented 5-piston pump and a Universal 9650 motor give 2 GPM of flow, and at 431 x 203 x 228mm it wall mounts, sits on a detailing cart or packs into a van, with a 2 year residential warranty. It comes as the machine only, the Standard Kit with a wall-mountable cage, 20 ft hose, metal gun and lance and four nozzles, or the Premium Kit with Active's own accessories.

Active 2.3. The high flow machine for the professional consumer: a brass endplate 5-piston pump and a 128 induction motor give 2.3 GPM, and it is serviceable and rebuildable. Choose the machine only, the Standard Pro Kit with a 50 ft 1/4 inch hose, swivel gun, 20 degree lance and nozzles, or the Premium Kit.

Active 3.0. The flagship, for car detailing as well as driveways and patios: 3.0 GPM at 1000 PSI working pressure from a patented 5-piston pump and a low-speed induction motor, so it rinses quickly, feeds a foam cannon well and runs fairly quietly. The machine only comes with four spray nozzles and a 1.65mm foam cannon orifice, and the Premium Kit adds the full accessory set.

The Premium Kits. Each adds a 50 ft 5/16 inch hose, a swivel gun, a bent lance, a 1000ml foam cannon and an outlet adaptor, all with fully machined 304 stainless steel fittings. All Active machines run on corded mains power.

Shop more pressure washers.

Active Premium Snow Foam Cannon on a pressure washer gun covering the side of a blue car in thick snow foam

Active foam cannon, hoses and storage

Snow foam. The Active Premium Snow Foam Cannon has brass and stainless steel internals, an adjustable spray pattern and dilution control for thick or light foam, and a wide-mouth 1 litre bottle that is easy to fill and hard to tip over.

Upgrade kit. The Active Premium Accessory Kit turns another machine into an Active setup: an M22-14mm to 3/8 inch adapter, a 50 ft 5/16 inch steel braided rubber hose with 304 stainless steel quick connects at both ends, and the Active swivel gun, whose internal swivel stops the hose tangling.

Reach and storage. The 15 Metre Extension Hose gives more reach round the car without moving the machine, and the Active Wall Mount holds the washer off the floor in powder-coated steel, with an open frame for the hose and cable.

Using it safely. Keep the nozzle at least 12 inches from the paint, as Active advises, rinse from the top down and let snow foam do the loosening before any contact wash.
